Compound Inverted / Metallographic Microscopes

The standard in ergonomic microscopy. For users doing repeated rework and inspection constantly

Configurable

Leica’s product line is completely configurable allowing you to choose the appropriate instrument for your application while reducing your total cost. Available completely manual or with full automation, brightfield, darkfield, DIC, and oblique lighting

Basic Instrument for Routine Applications

Basic inverted materials microscope which is easy to use, cost effective, and amazing Leica optics for clear high resolution viewing. Used for routine applications such as cross-section review and documentation, measuring with Leica Enersight software, and compact for work in any manufacturing or lab environment

Features

DMi8 with Automation & Analysis

DMiLM Routine Applications

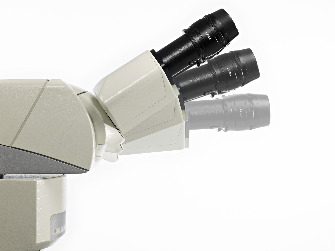

DMi8 Platform

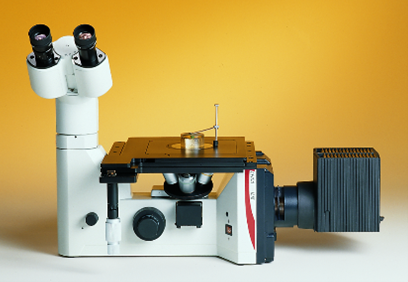

DMiL M

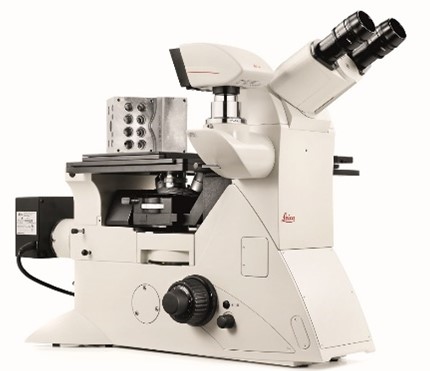

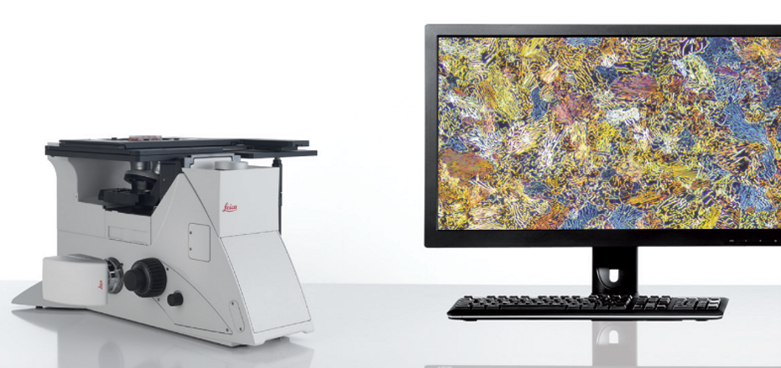

DMi8 Configured for imaging

Pol Microscopy

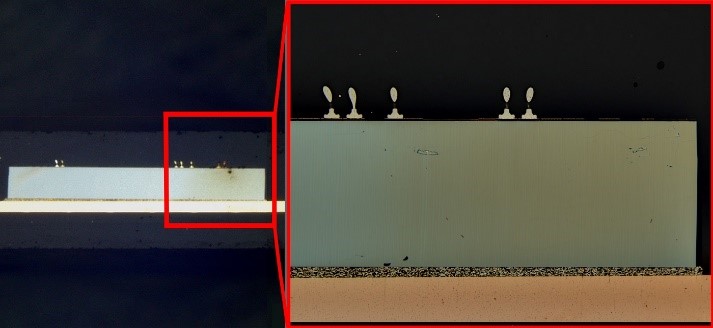

2D Measurement - Semiconductor

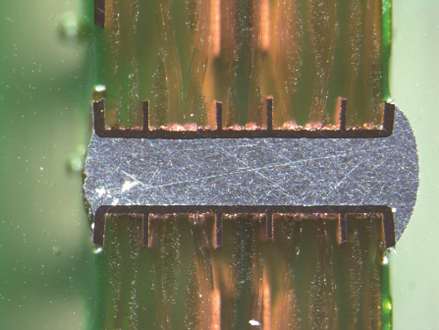

Electronic Cross Section Analysis

Specifications

Characteristics	Leica DMi8 M	Leica DMi8 C	Leica DMi8 A
Power supply	internal	internal	Electronic box CTR basic or CTR advanced
Display		6 or 12 LEDs	Options: LEDs, function keys, touchscreen
Focus	Manual 2-gear	Options: Manual 2-gear, Manual 3-gear with focus stop and torque adjustment	Options: Motorized, Manual 3-gear with focus stop and torque adjsutment
Objective Turret	6-fold M25	Options: 6-fold M25 coded, 6-fold M32 coded	Options:6-fold M25 coded, 6-fold M32 coded, 6-fold M32 motorized,6-fold M25 motorized
Reflector Turret	Fixed BF-splitter	2-fold reflector turret coded,6-fold reflector turret coded,6-fold reflector turret uncoded	6-fold reflector turret motorized, 2-fold reflector turret coded,6-fold reflector turret coded,6-fold reflector turret uncoded
Reflected light axis	Manual Incl. centerable field and aperture iris diaphragm and manual UC- 3D illumination, slot for polarizer and additional filter slider	Manual Incl. centerable field and aperture iris diaphragm and manual UC-3D Illumination, slot for polarizer and additional filter slider	Option: Motorized Incl. centerable field and aperture pinhole illumination, slot for polarizer and additional filter slider Manual Incl. centerable field and aperture diaphragm and UC-3D illumination, slot for polarizer and additional filter slider
Contrasting techniques (Incident light (IL))	BF, UC-3D, DIC, Pol	BF, UC-3D, HDF, DIC, Pol, Fluorescence	BF, UC-3D, HDF, DIC, Pol, Fluorescence
Contrasting techniques (Transmitted light (TL))		BF, Pol, Ph, DIC, DF	BF, Pol, Ph, DIC, DF
Magnification changer		Active on front port, manual coded: 1.5x or 2.0x	Active on all ports, motorized: 1.5x, and/or 2.0x
Control elements for Stand	Intensity control	Intensity control IL/TL switch	Option, dependent on configuration: Function keys on front panel ,Touchscreen, Left: light- and contrast manager, Right: 4 freely programmable function keys, Focus control
Control elements for Smart Move			Control element for focus and stage movement 4 freely programmable function keys
Control elements for STP4000			External 6“ touchscreen, External 6“ touchscreen with xyz
Control elements for STP8000			External 6“ touchscreen with xyz control and 11 freely programmable function keys
Stage	Fix stage with different inserts and object guide, Manual 3-plate stage with different inserts Gliding stage	Fix stage with different inserts and object guide, Manual 3-plate stage with different inserts Gliding stage	Motorized 3-plate stage with different inserts Scanning stage with different inserts, Manual 3-plate stage with different inserts Gliding stage
lllumination	LED Halogen (ext. power supply)	LED Halogen (ext. power supply) EL6000 Hg 100W (ext. power supply)	LED Halogen (ext. power supply) EL6000 Hg 100W (ext. power supply)
