Routine Inspection/Assembly Microscopes

Maximize quality control and achieve flawless assembly with our line of durable stereo microscopes designed for routine inspection and precision assembly tasks. Whether examining small components, printed circuit boards, biological samples, or assembling intricate devices, these stereomicroscopes provide the crisp 3D imaging and versatile functionality required for meticulous workmanship.

Routine Stereo Microscope
Maximize quality control and achieve flawless assembly with our durable, ergonomic stereo microscopes designed for routine inspection and precision assembly tasks. Whether examining small components, printed circuit boards, biological samples, or assembling intricate devices, these stereomicroscopes provide the crisp 3D imaging and versatile functionality required for meticulous workmanship.

Best In Class Instruments

The A60 is the best in class inspection and rework microscope featuring patented “Fusion Optics” only from Leica. See more area, experience greater depth of focus with higher resolution and minimal investment. Used in manufacturing, assembly, general inspection, engraving, jewelry setting, and more.

Increase efficiency and capability

The Ivesta 3 series of products is designed to enhance efficiency, comfort, and convenience in production, assembly, and rework processes. Equipped with “Fusion Optics” technology, these products elevate assembly and rework to the next level. Furthermore, they offer documentation capabilities through integrated cameras and support for add-on cameras, catering to future digital imaging requirements.

Fusion Optics™

Both the A60 and Ivesta 3 product lines from Leica feature the company’s unique “Fusion Optics” design. This innovative technology provides users with 30% more viewing area and 30% greater depth-of-field compared to conventional optics. As a result, operators can minimize the need for constant refocusing and sample movement, reducing repeated motions and improving ergonomics. Ultimately, this design enhances efficiency and comfort for users during their work.

Features

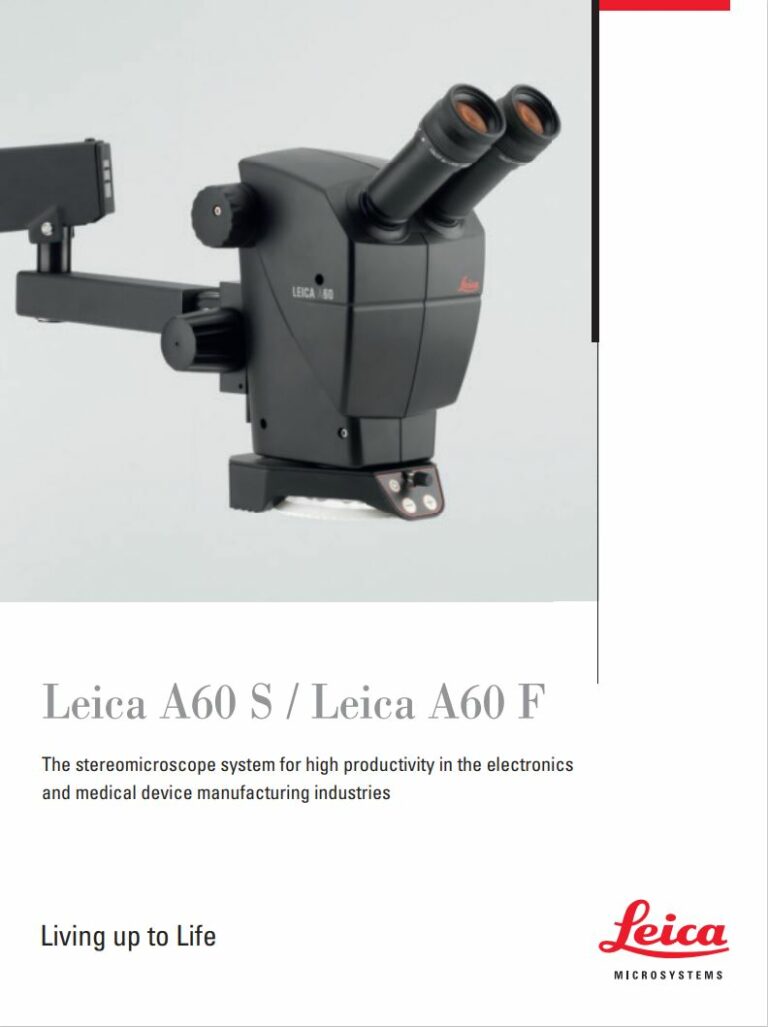

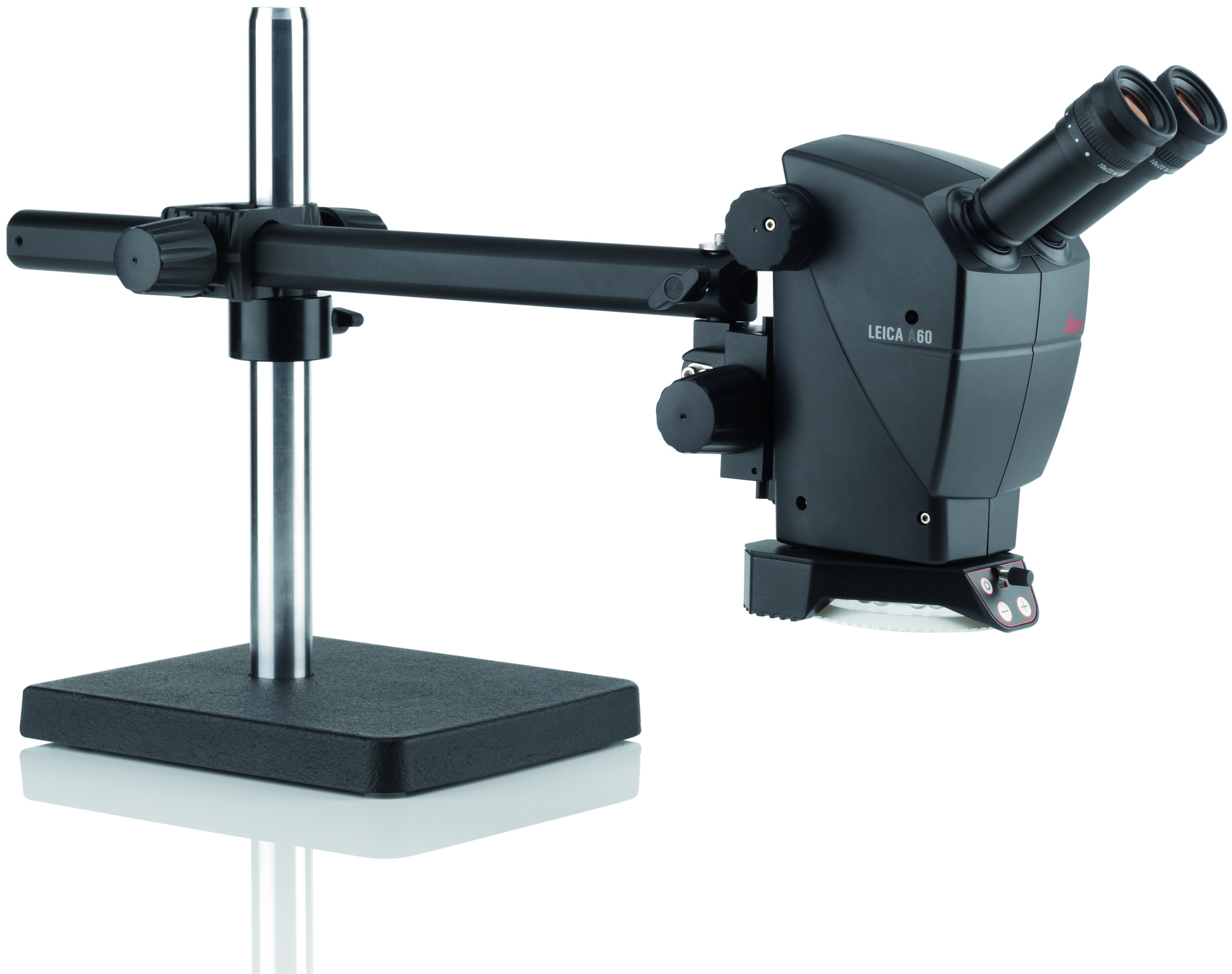

A60 S

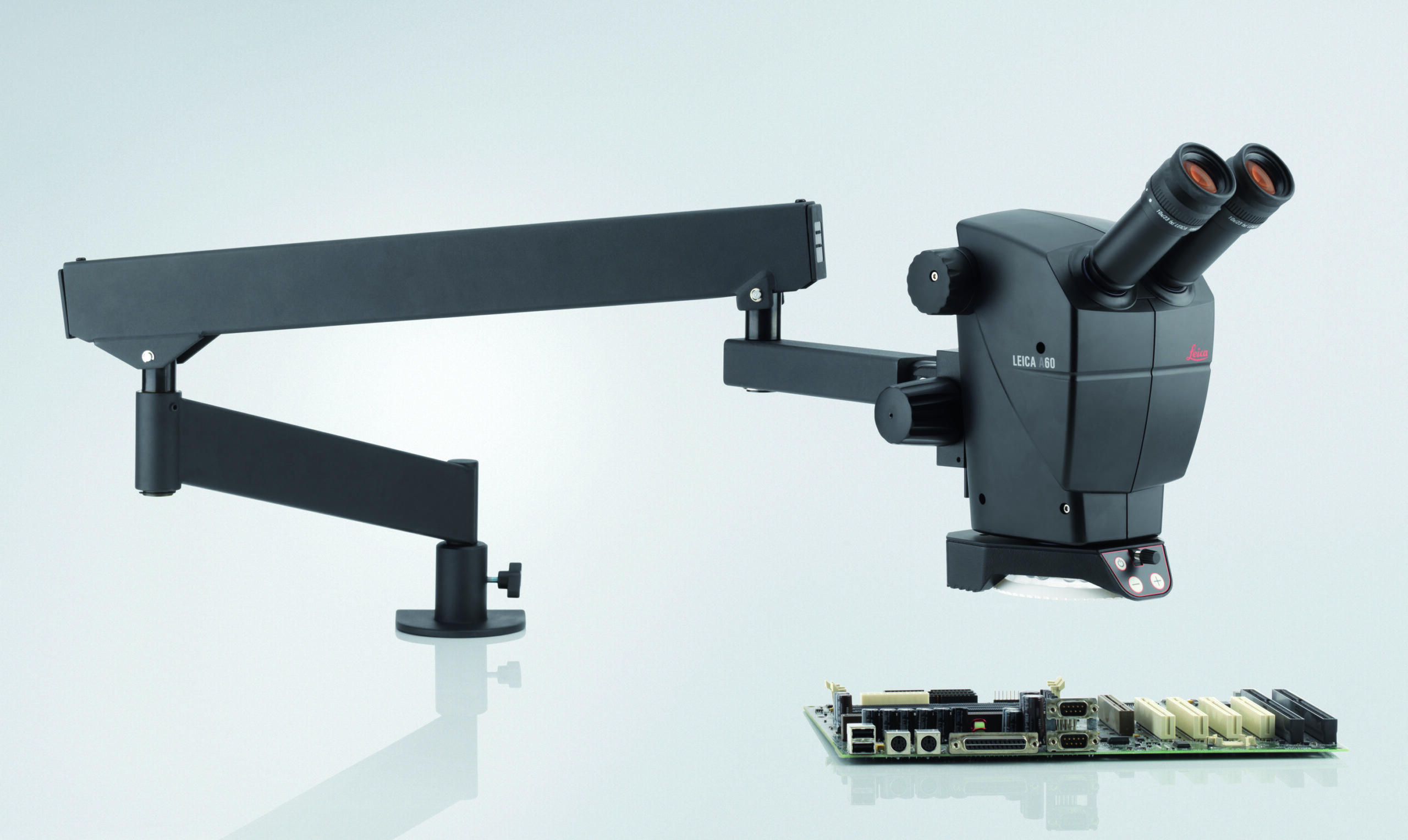

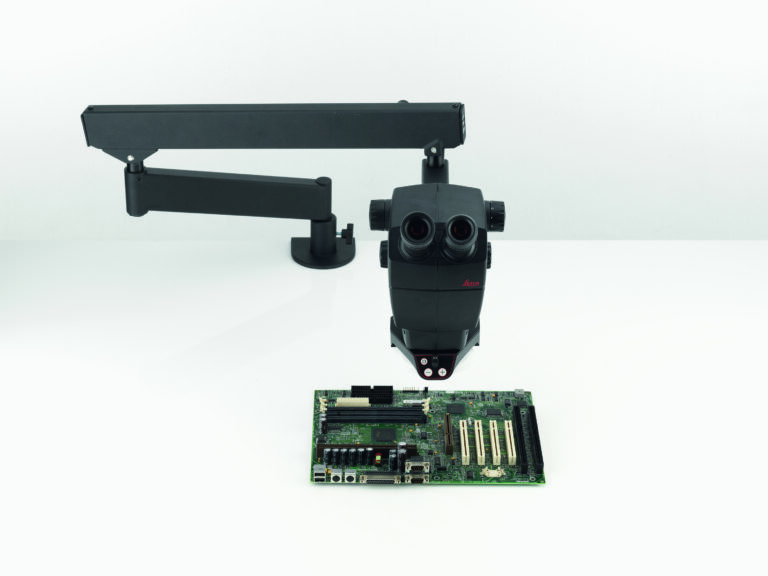

A60 F

Ivesta 3

Ergonomic design with 38 degree incline for A60’s and 35 degree incline for Ivesta 3, fusion optics, focus and zoom knobs positioned closer to each other. All of these features require fewer and shorter repeated movements making for greater efficiency and ergonomics.

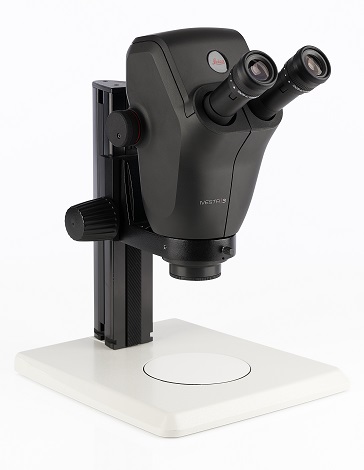

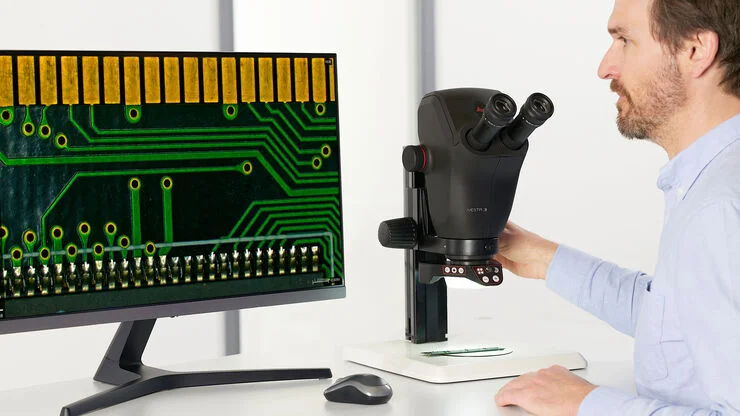

Ivesta 3 Integrated

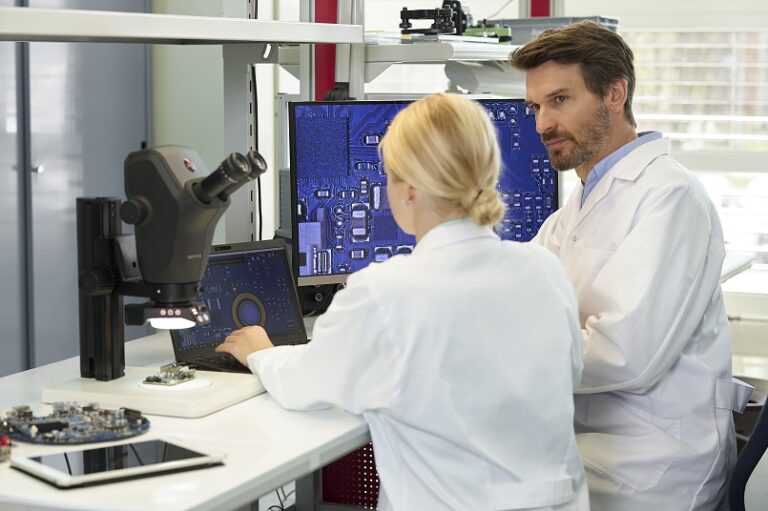

Inspect, compare, measure, and share seamlessly on a single intuitive interface, regardless of how or where you do it. Offered only on Ivesta 3 integrated and Ivesta 3 c-mount

Ivesta 3 Integrated, Ivesta 3, Ivesta 3 C-mount

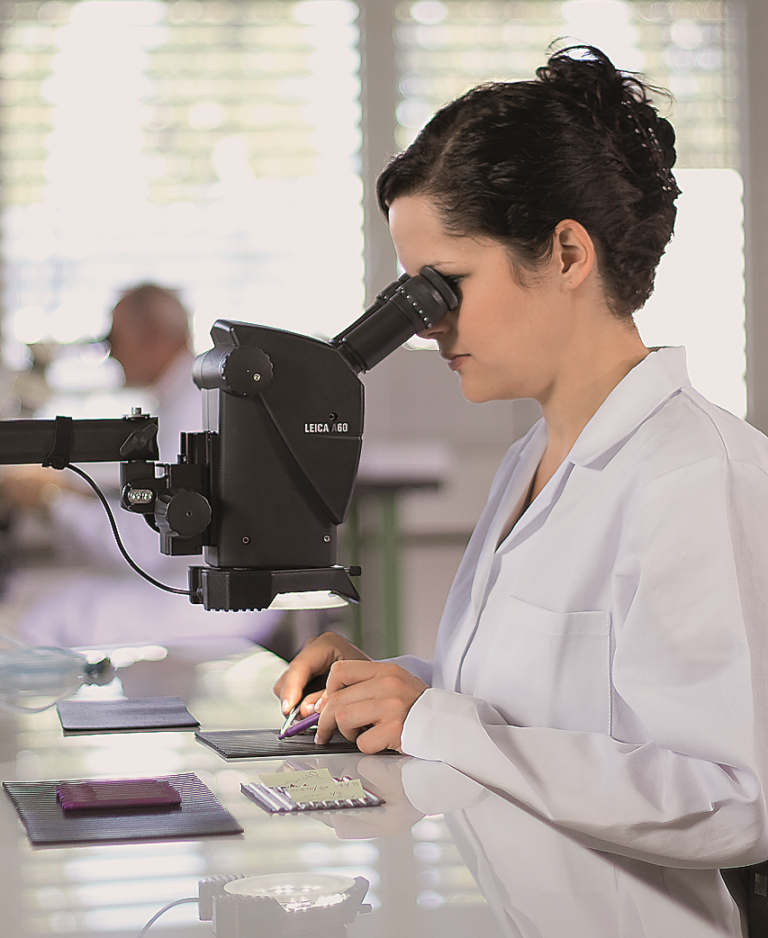

A60 S

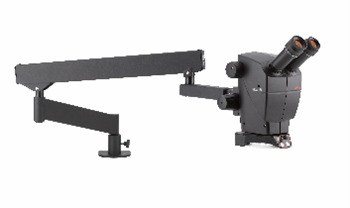

A60F

Routine Inspection Specifications

Characteristics	Leica A60 F	Leica A60 S
Optical system, lead-free	Greenough Fusion Optics 10° covergence angle using best-corrected central part of the objective
Viewing Angle	38°	38°
Zoom	6:1	6:1
Magnification range *	5x -30x	5x - 30x
Maximum resolution	500 lp / mm	500 lp / mm
Maximum numerical aperture	0,167	0,167
Working distance *	122 mm	122 mm
Object field diameter *	46mm max.	46mm max.
Adjustable zoom limits *	Continous	Continous
Video/photo outle	N/A	N/A
Standard objectives, lead-free	Apochromats 0.63x	Apochromats 0.63x
Ergonomic eyepieces, fixed and adjustable, with cups	N/A	N/A
Ergonomic eyepieces for eyeglass wearers, adjustable, with eyecups	Fixed in position 10x/23 adjustable	Fixed in position 10x/23 adjustable
Interpupillary distance *	52 mm – 76 mm	52 mm – 76 mm
Live image on an HDMI monitor	N/A	N/A
Full-screen image capture	N/A	N/A
Sensor diagonal	N/A	N/A
Pixel size	N/A	N/A
Input	N/A	N/A
Supported software	N/A	N/A
File formats	N/A	N/A
Compatibility	N/A	N/A
High-definition connector	N/A	N/A
USB connectors	N/A	N/A
Multicolor status LED	N/A	N/A
