Hardness Testing Rockwell/ Universal: 574, RH2150, VH3300, VH3100, UH4000

Buehler provides comprehensive hardness testing systems, including testers, test blocks, and proprietary software. Our integrated solutions streamline testing with user-friendly interfaces and industry-standard test blocks, ensuring consistent and reproducible results.

Rockwell® Hardness Testers Features

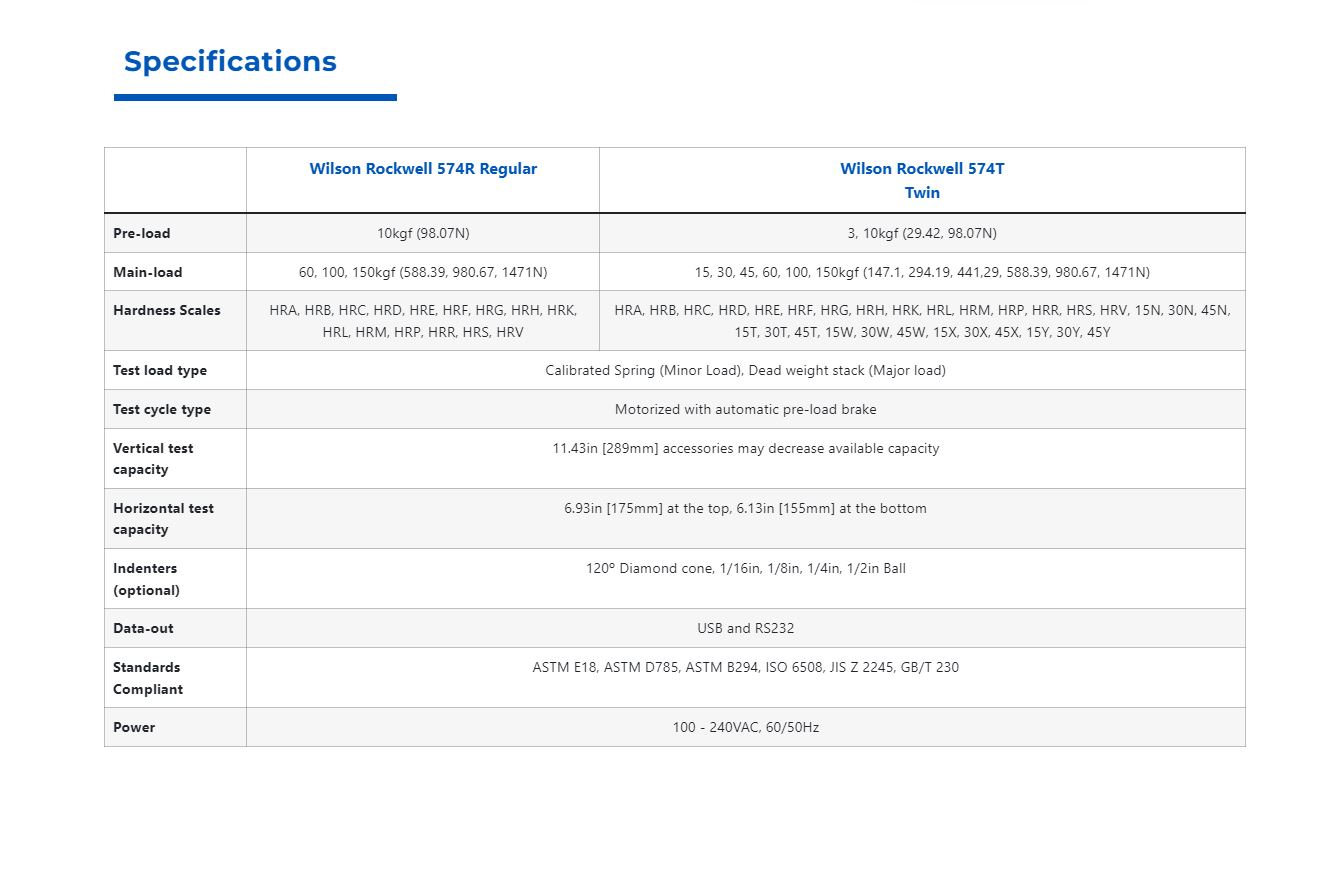

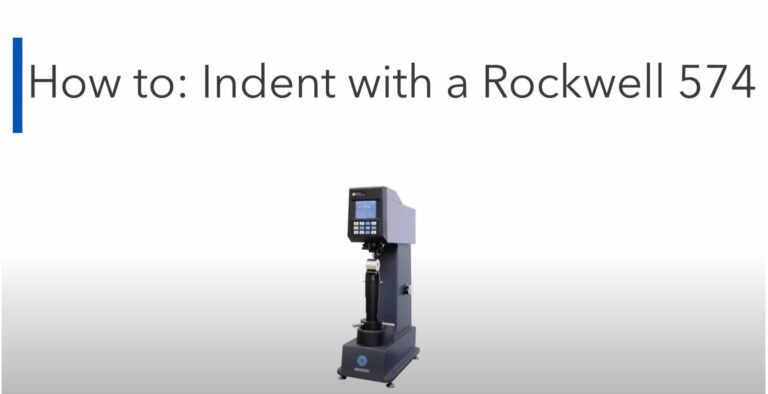

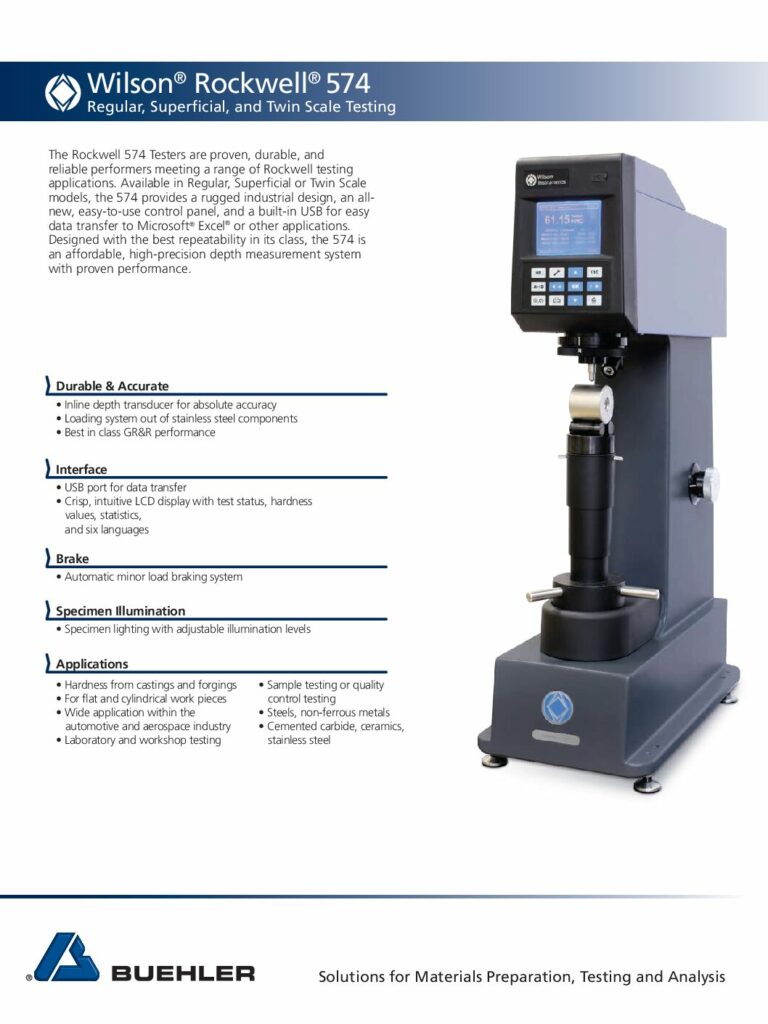

Wilson Rockwell 574 Hardness Tester Series provides leading Gauge Repeatability and Reproducibility (GR&R) in hardness testing instruments. Offers regular and superficial twin scale models with a load range from 3-150kgf.

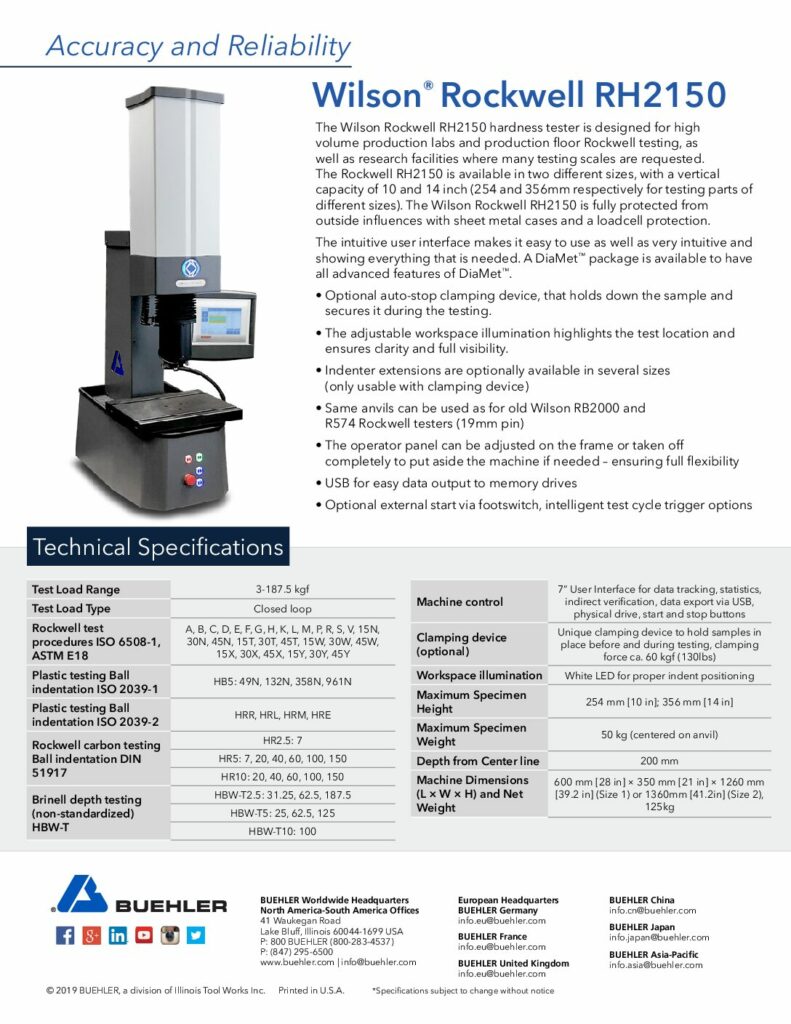

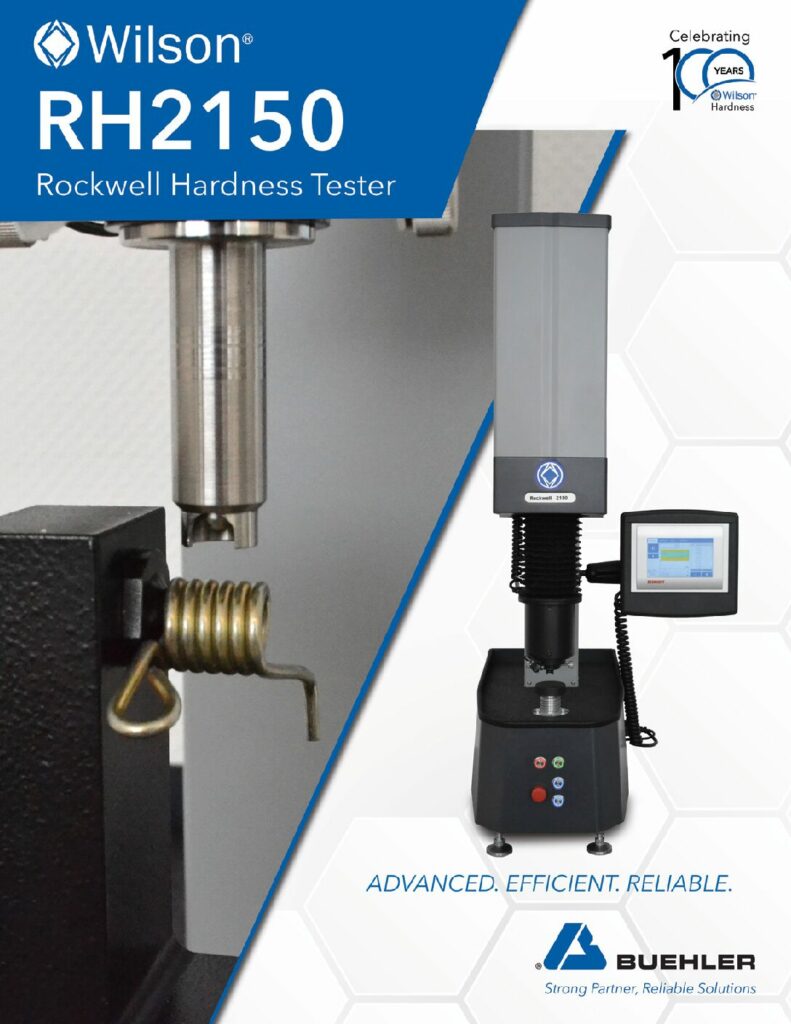

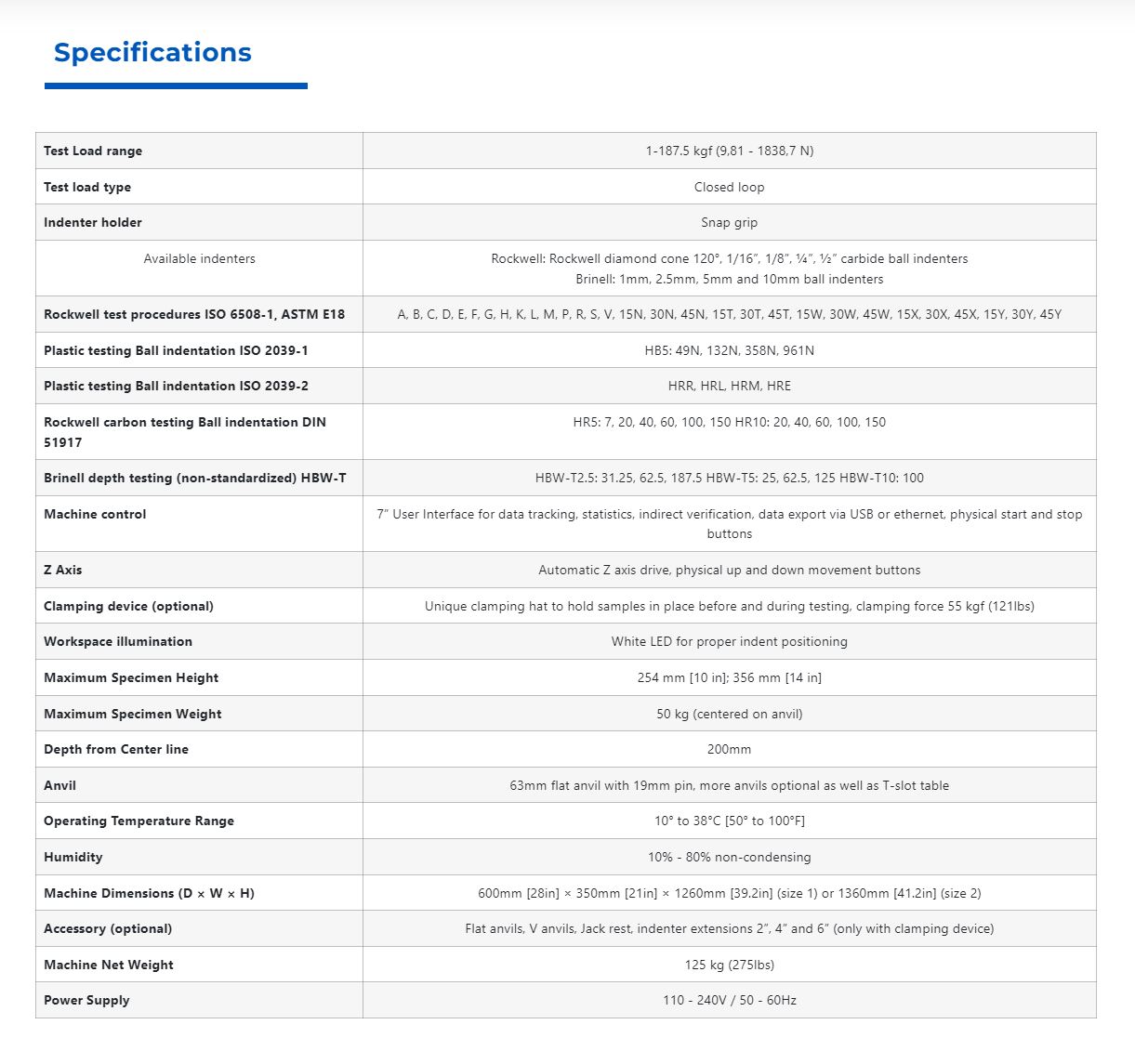

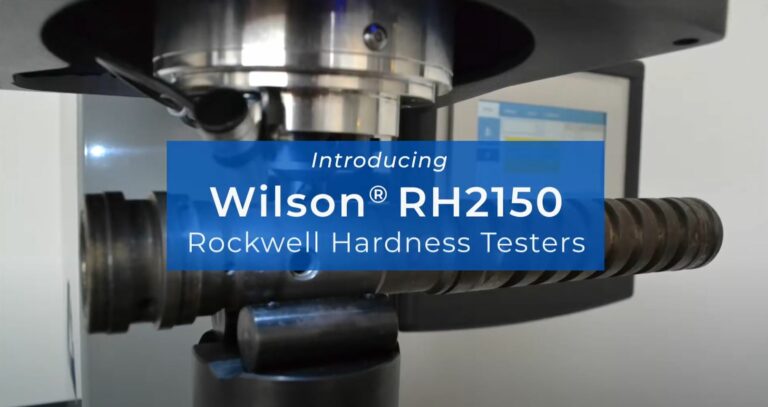

RH2150 Series prioritizes flexibility, ergonomic testing, fast data output with a wide range of testing scales (1 – 187.5 kgf). Available in two sizes (10- and 14-inches vertical capacity).

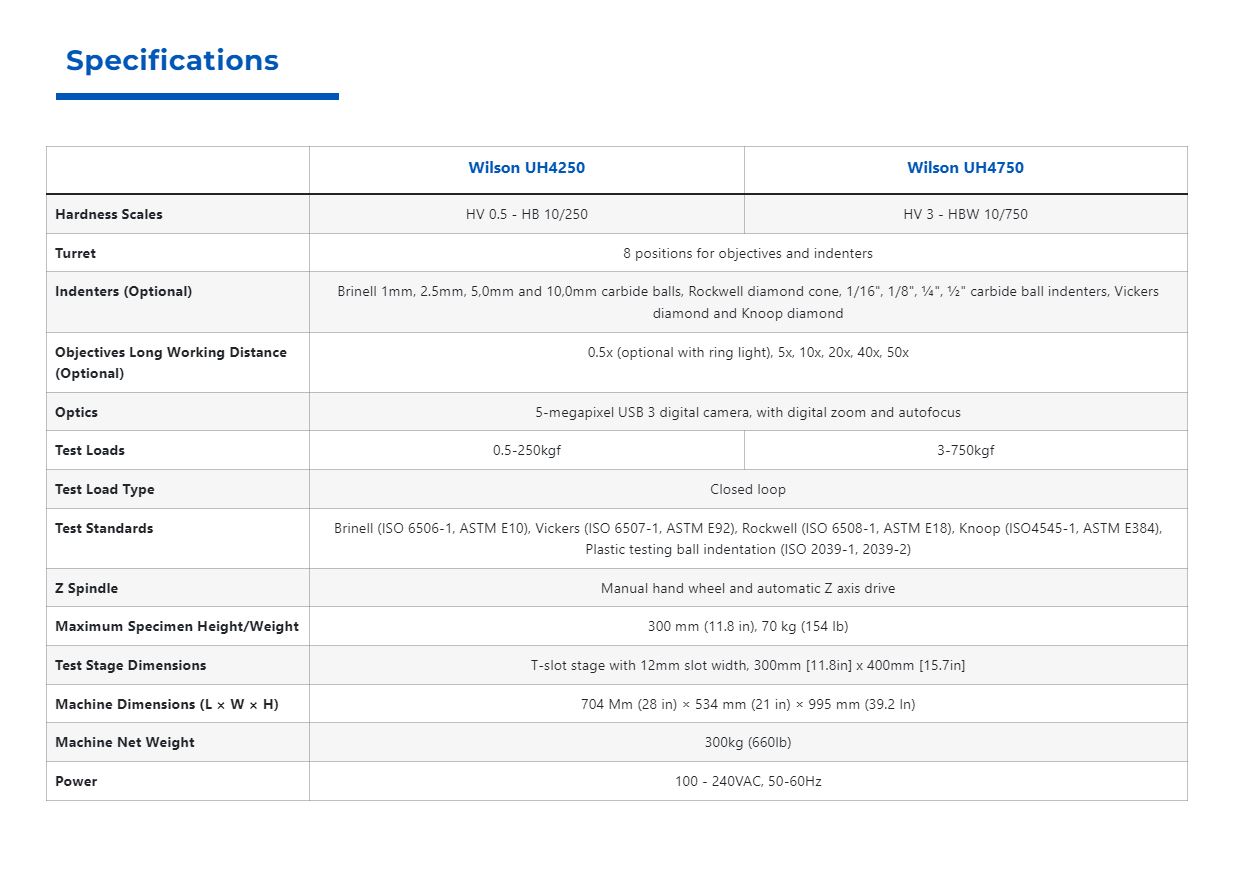

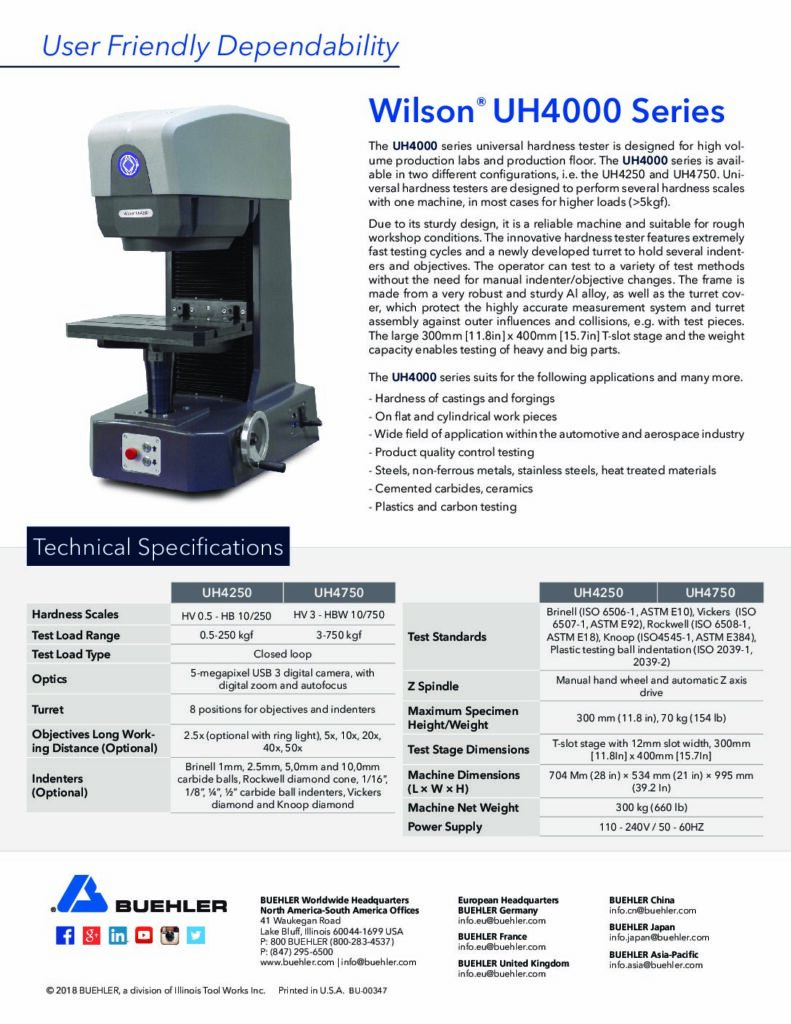

Wilson UH4000 Universal Hardness Tester series, tailored for high-volume applications. Offered in three configurations: the UH4750, UH4250, and the Auto UH4250 with motorized XY stage.

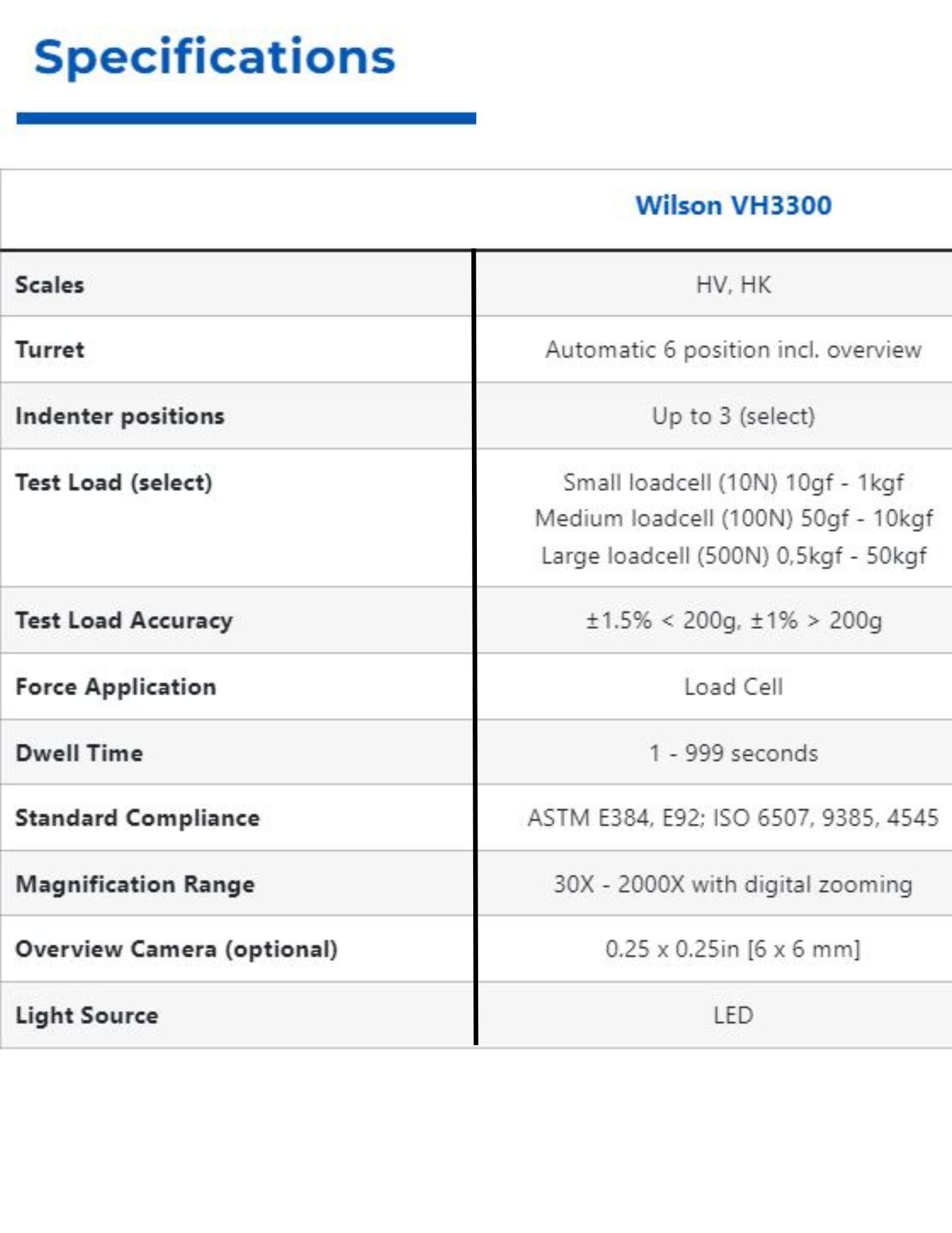

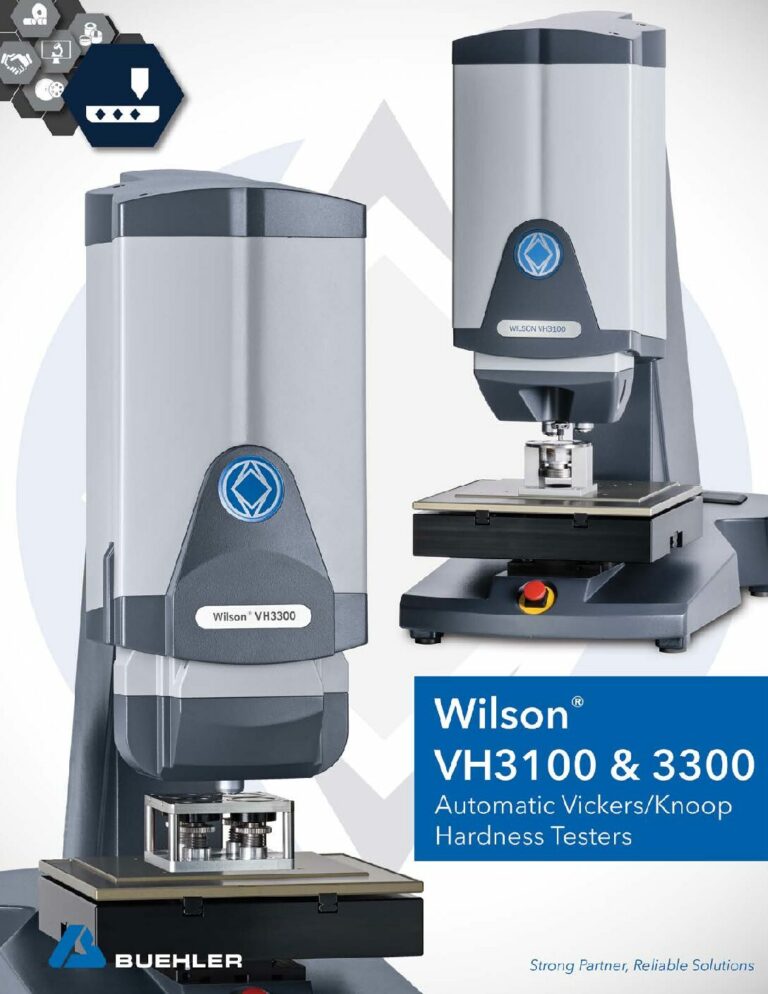

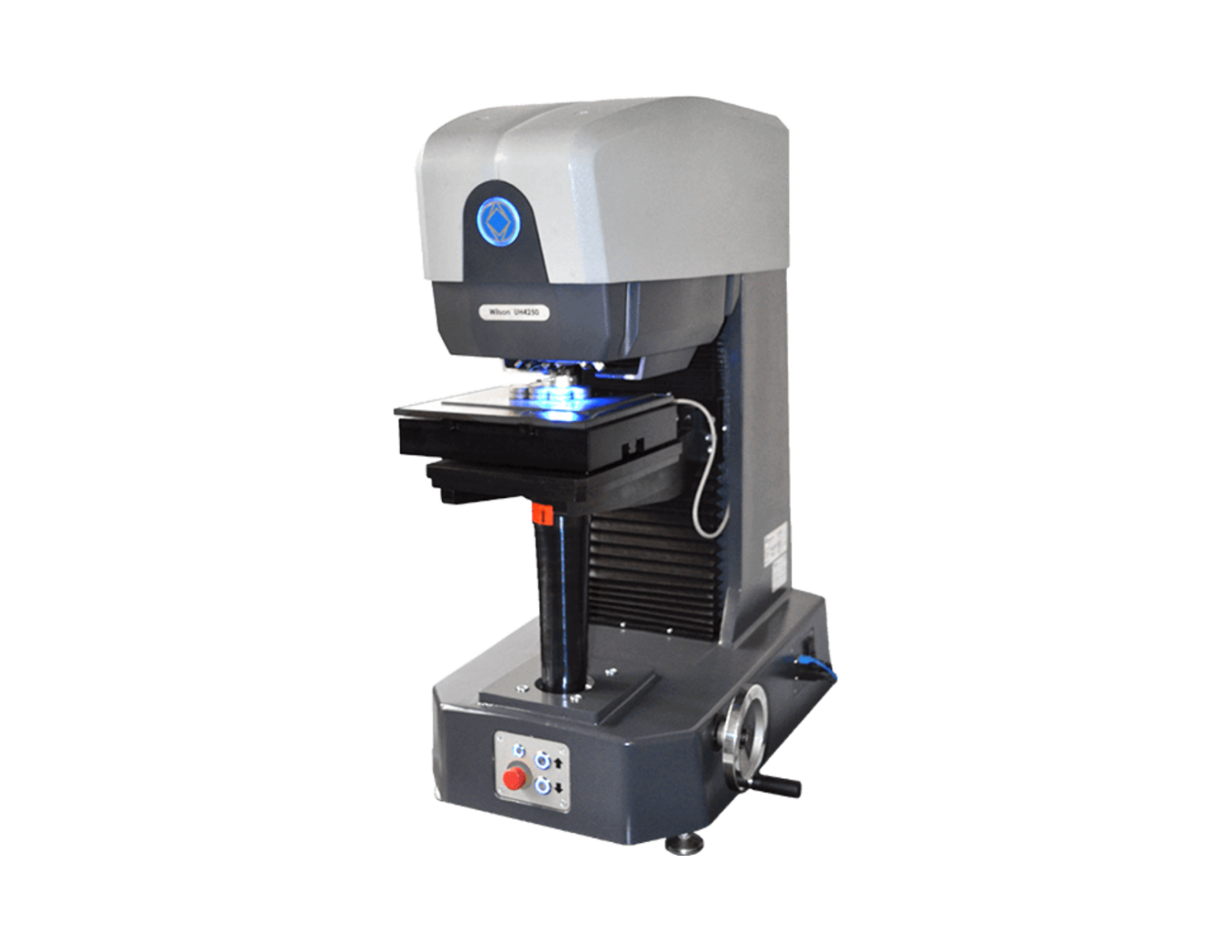

Wilson VH3300/VH3100 offers an advanced, fully automated hardness tester, for both Vickers and Knoop testing. Available load range of 10gf to 50kgf (VH3300), range of 0.05-10kgf (VH3100).

Benefits

Industry Leading Gauge Repeatability and Reproducibility (GR&R)
Automated Hardness Testing System
Collision Resistant System preventing indenter or objective damage

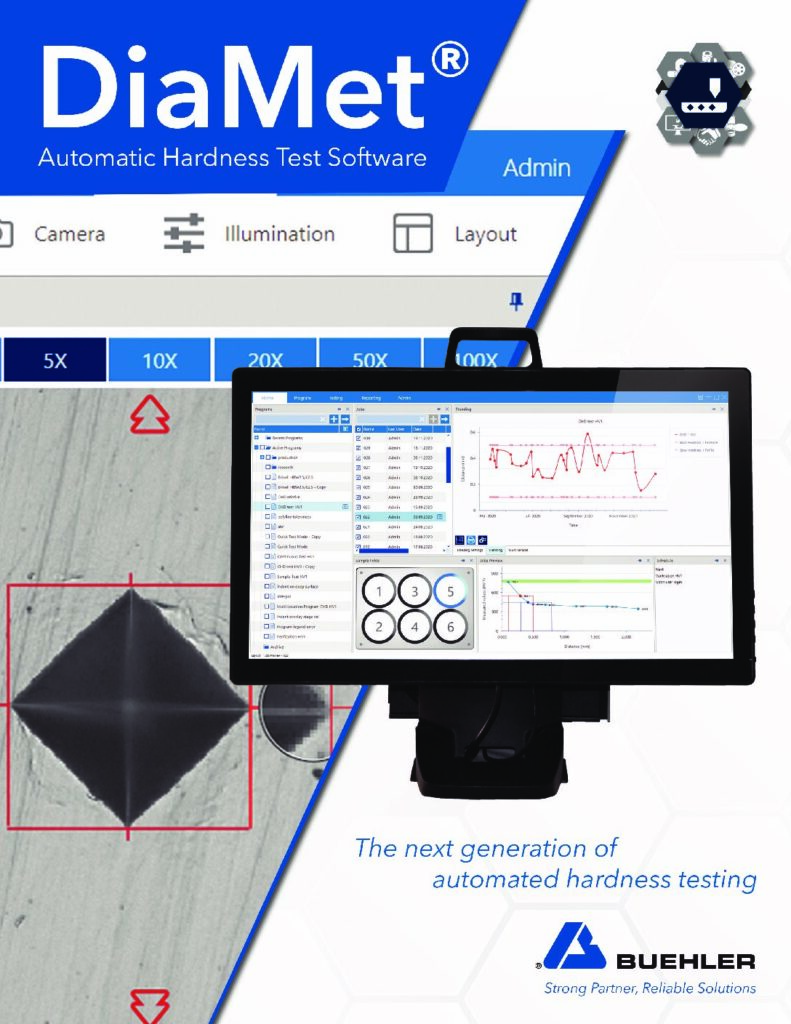

Ease of operation is facilitated by both the intelligently designed machine and the user-friendly DiaMet software
Minimized complexity by aligning indenters, objectives, and the optional overview camera at a fixed position, reducing moving parts and service requirements
Designed for testing to Vickers, Knoop, and Brinell standards
Optional clamping tool, adding stability throughout the testing process
