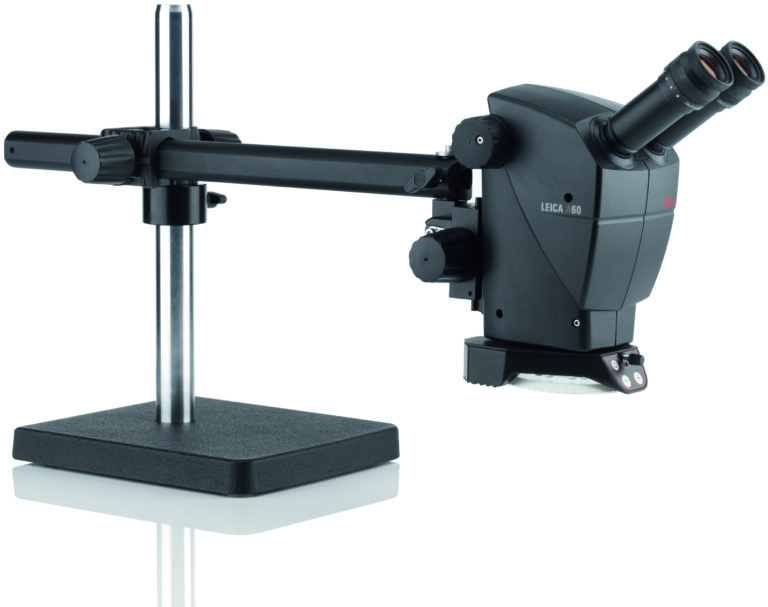

Leica A60 Inspection & Assembly Microscope

The Leica A60 stereo microscope system is configured for all industrial inspection, assembly and quality control tasks.

This extremely helpful tool makes your inspection and rework of printed circuit boards (PCBs) in the electronics industry much easier. The Leica A60 S optimizes productivity and quality in the manufacture of medical devices (hearing aids, cardiac pacemakers, catheters etc.).

Features

All-in-one package including eyepieces, stand, and LED Ringlight
Fusion Optics TM
6:1 zoom ratio with 5X-30X magnification
Largest field of view in the industry
Made of static dissipative materials
110 mm long working distance for easy tool access

Benefits

Large viewing area and greater depth of focus minimizes repetitive motions making inspections and rework faster and more efficient.
Bright uniform ring illumination with diffuser reducing glare while providing high brightness revealing all the details needed.
Static dissipative design reduces chances of static build-up in sensitive environments.

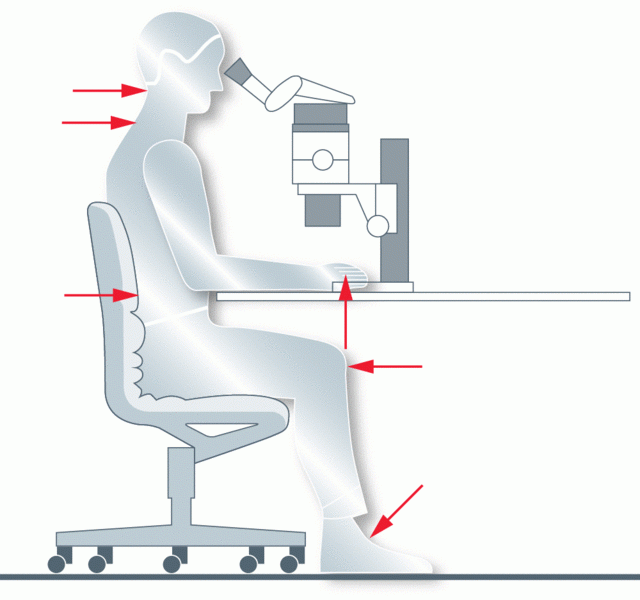

380 inclined binocular ergonomic design with high-eyepoint widefield eyepieces increases operator comfort increasing productivity and effectiveness
Protective lens cover eliminates fumes from entering optics and reducing visibility

What are Fusion Optics?

FusionOptics™ is an innovative technology by Leica Microsystems that leverages a neurological phenomenon in stereomicroscopes. Instead of having two identical beam paths, FusionOptics™ utilizes one beam path with a great depth of field, and another with super-high resolution. The human brain combines the best information from both channels, resulting in a high-resolution image with an exceptional depth of field, surpassing the capabilities of conventional stereomicroscopes. A60 operators benefit with 30% more viewing area, 30% more depth-of-field minimizing refocusing and sample movement with better ergonomy and crystal clear images.
